SAONON

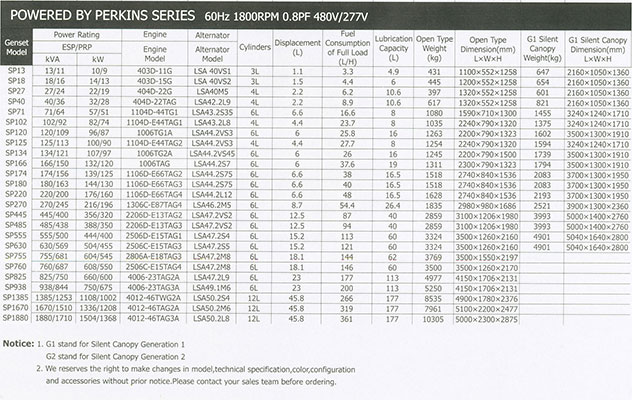

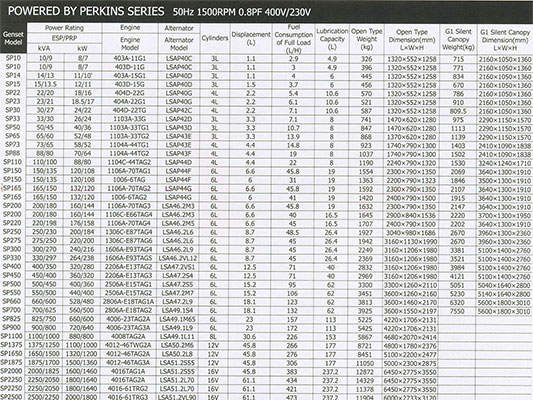

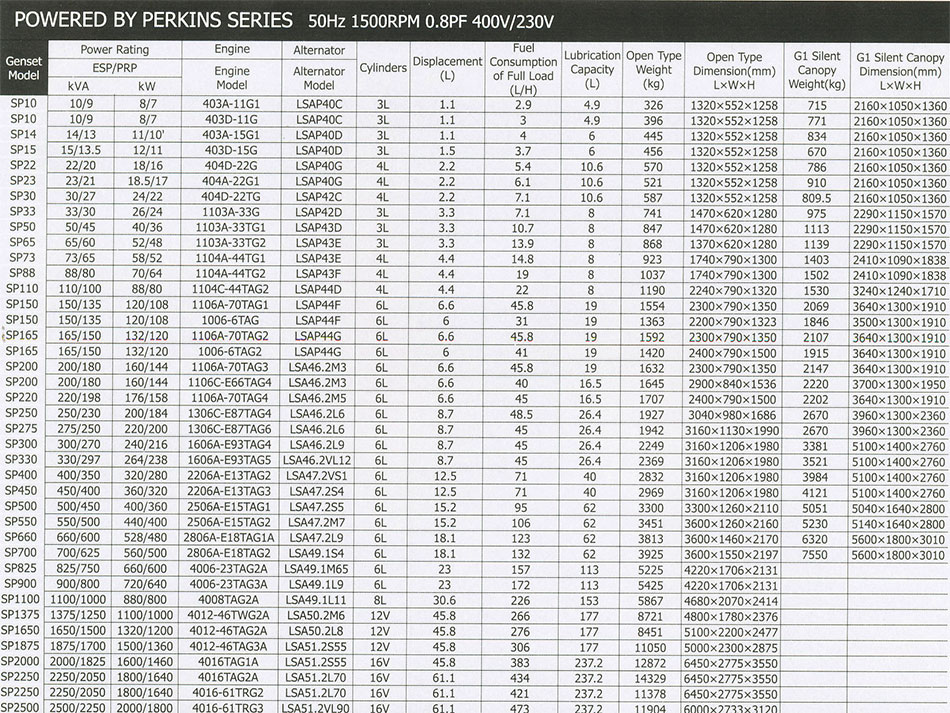

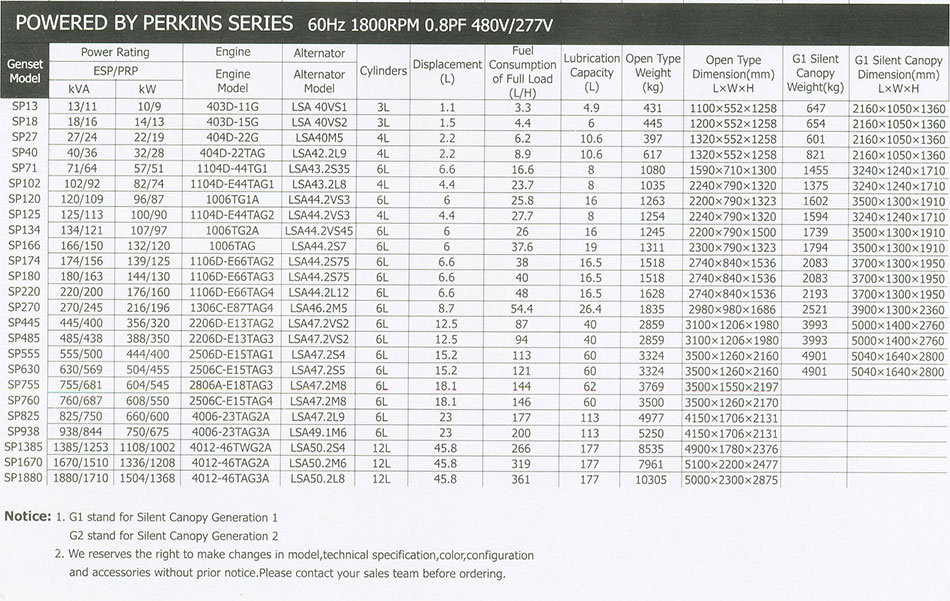

POWERED BY PERKINS SERIES
DIESEL GENERATING SETS (Power range: 10kVA-2000kVA , 1-PH or 3-PH, 50Hz or 60Hz)

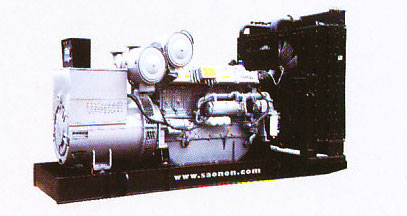

Powerful Perkins engine and highly reliable alternator
Perkins Engine
powerful, low nosie, high stability and reliability , low emission,
Electronic fuel injection system with electrical governor ensure continuously variable and low fuel consumption.
500 hour service interval

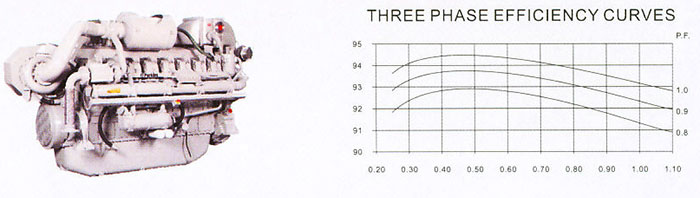

Alternator
Versatile, robust and reliable with high electrical efficiency
Class "H" insulation, standard degree of protection IP23

Stable performance
- Minimum 24 hour runtime at full load
- Average failure interval : not less than 1000 hours

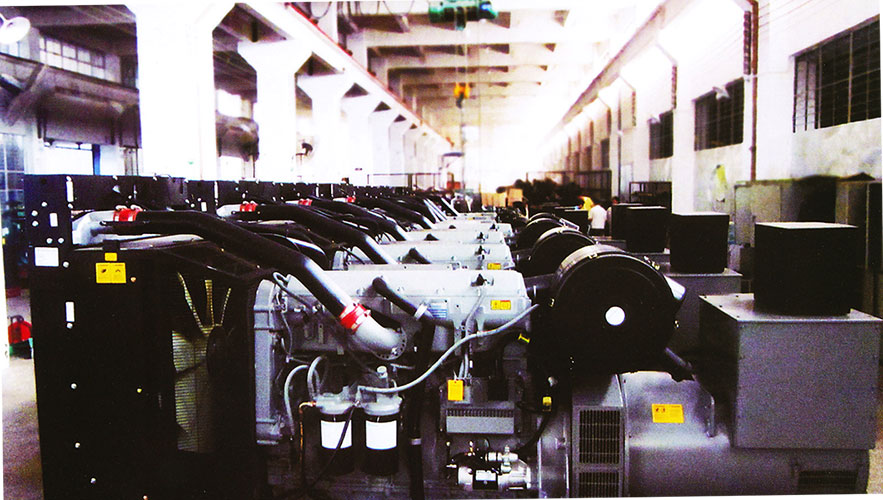

Strictly manufacturing technique and detection process
- Being through 73 inspection, testing, the entire
   production process is strictly controlled and monitored
   to ensure the qualified rate of more than 99%
- 110% over-load test before shipment

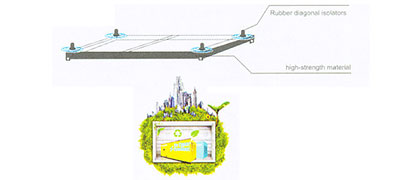

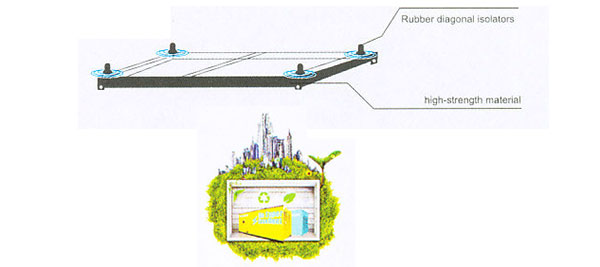

Base Frame and Anti-Vibration Mountings
- Rubber diagonal isolators are specially designed to reduce engine and alternator vibration and prevent distortion in the voltage and harmonic output of the gensets
- All generators are equipped with base frame or base fuel tank with high-strength material to enhance the stability
- Strengthen all the bolts, rotating shaft, and inspect all the detailed rotation

Eco-friendly
- Muffler and absorbent cotton reduce acoustic vibration
- The special designed emission system, which has obtained the environmental green certification, greatly reduce harmful gas emissions

Enhanced Safety
- Carbon dioxide fire extinguisher system can be equipped with gensets for the double-enhanced safety
- All the electrical components like current selected switch, voltage regulator, air switch installed in the unit interior , for protection
- Hot surface marking and protecting device protect personnel from harm
- Install and double check all the exhaust pipe support to ensure reliability

Advanced water, send, dust, rat roof design
- Access door and resistance board of generating sets adopt special , which can keep all the electronic windings and oil pipe in excellent condition.

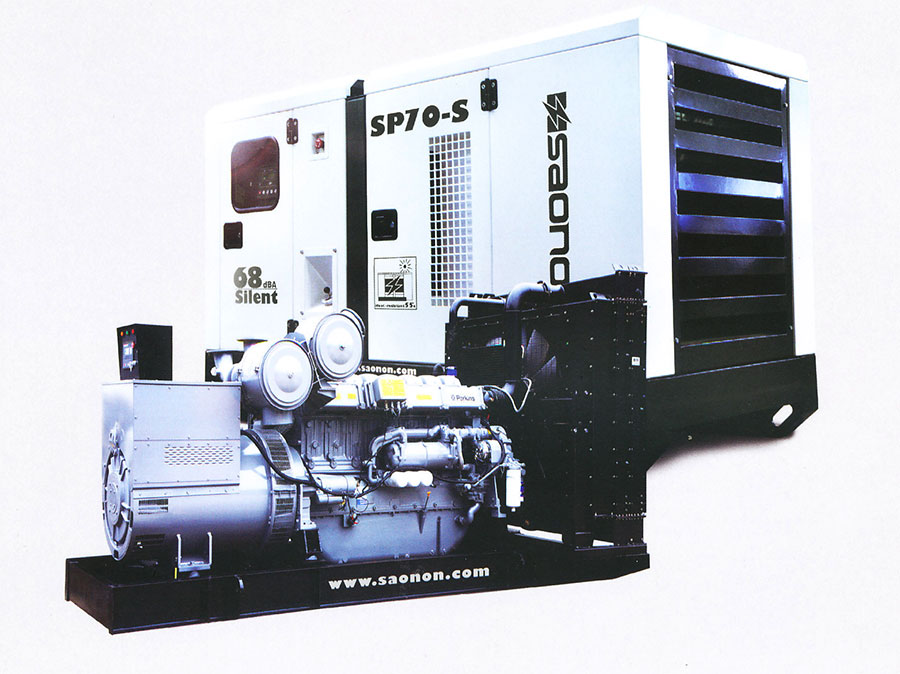

Marvelous painting and welding technology
- All the sound-proof and rain-proof canopy adopt anti-corrosion painting material and anti-rust plate, which are suitable for the crucial working environment like the ocean which is humid and salty.

Designed for crucial environment
- Radiator, designed for ambient temperature up to 52 ံC, enable the gensets work very well in tropic area such as Middle East and Africa
- Gensets work stable in extremely climatic region like tibet as well

Tracking service
- Pre-sales group select high-standard products and provide with professional technical support and suggestion according to the requirement and condition
- Periodic customer service phone remind of maintenance services
- 24 hours of uninterrupted service and technical support are provided
- Excellent parts supply chain and adequate service parts ensure the satisfaction for emergency needs

Personalized design
- Various , flexible and individualized designs will be more in line with the needs of customer
- The different material will be used according to the working enviroment
- Various functional module devices, daily fuel tank and automatic refilling system can be added as customer requests.

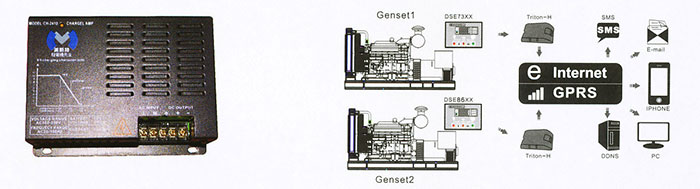

-12A independently research battery charger, greatly shorten the charging time
- International well-known digital, intelligent control systems and electrical cabinets are availably provided to create a more consistent with the preferences of customers

- The ATS can automatically transfer load from main power to emergency power without operator intervention. When the main power fails or voltage trop below 80% of normal voltage, the ATS will start the emergency generator, after a preset time of 0 to 10 seconds. At reted speed, the ATS will transfer load to emergency power with available size.
- Intelligent monitoring, paralleling and grid-connected technology realize the generator power the most perfect black start seamless connection with city electricity , which can provide not power-off key equipment with a reliable power
